20FT Container Filling Station (15,000 liters-21,000 liters)

Capacity(liters)

15,000-21,000

Weight(kg)

10500-20500

Max Working Pressure(MPa)

0.1

+86 0538-8881799

Description

Product Description

Function and Application

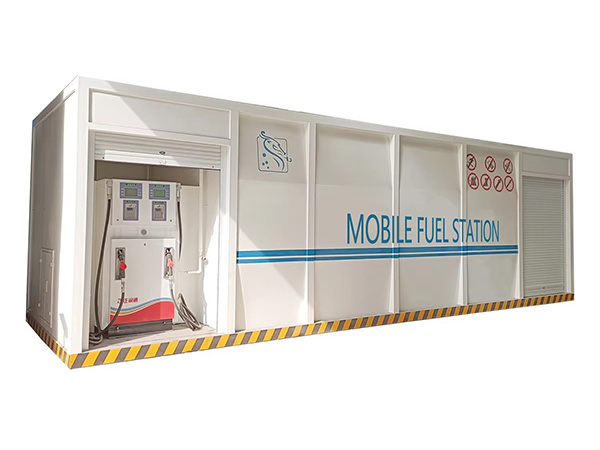

Mobile fuel station is for the distribution of diesel and gasoline with tanks of variable capacity. It is composed of a container, divided into two main compartments, compartment for fuel tanks and compartment for pump and dispenser, and also provided with optional generator.

Technical Features

--- Fuel tanks of variable capacity, for diesel or petrol, also with option both diesel and petrol in one station.

--- Explosion-proof type to ensure safety.

--- Fuel loading system to load from fuel tank truck.

--- Top lockable hatches to get access to the manholes of tanks and refuel from above.

--- Separate compartment for generator or other equipment, complete with lockable door.

--- Leak detector systems and alarms (in case of double skin tanks).

--- Electric switchboard in the generator compartment.

--- Fuel level indicator

--- Emergency cut-off

--- Static grounding

--- Stainless filters

--- Lighting system

--- Optional generator to supply electricity power

Specification

Total volume 5,000-40,000 liters, and can be customized.

S.No	Configuration	Specification
1	Fuel storage tank	One single wall or double walled tank, capacity 15,000 liters ~ 21,000 liters.

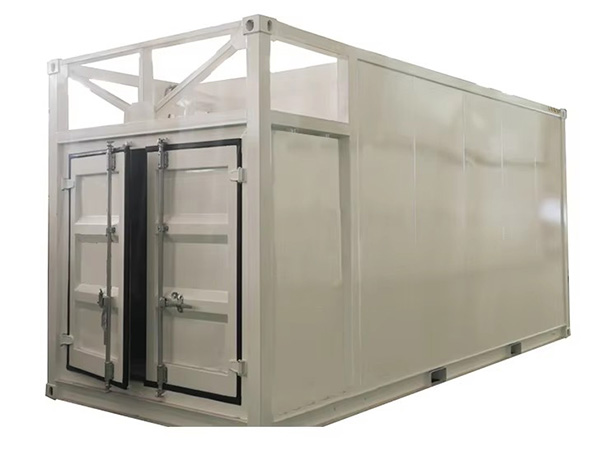

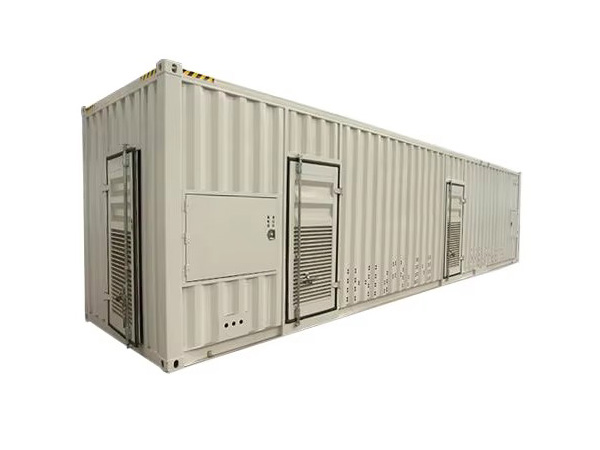

2	20ft container	A 20ft container includes fuel storage tank location and operation compartment.

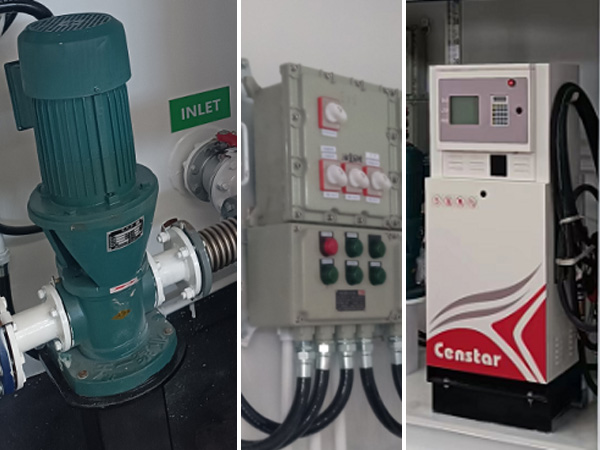

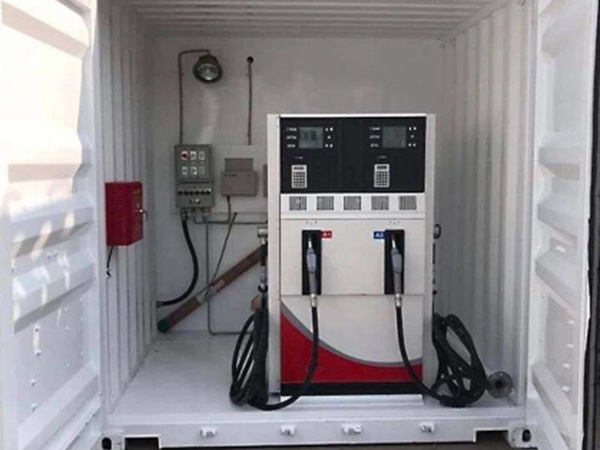

3	Fuel dispenser	1 or 2 dispenser, each with 1 or 2 filling nozzle. DN40 fuel outlet pipe, equipped with maintenance protection device.
4	Level gauge	Sight glass level gauge or electric level gauge
5	Electric system	Power control box and wire

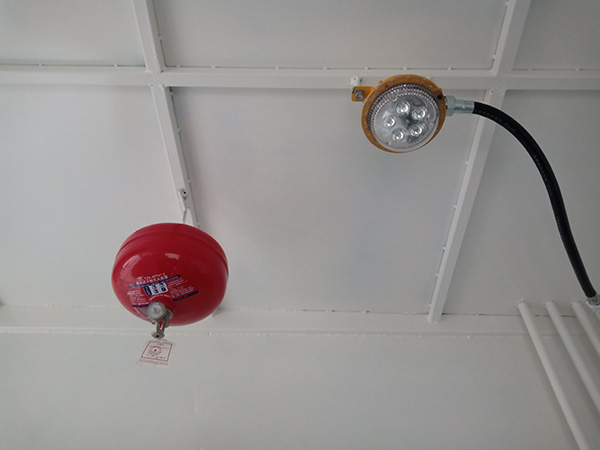

6	Light system	Explosion-proof light

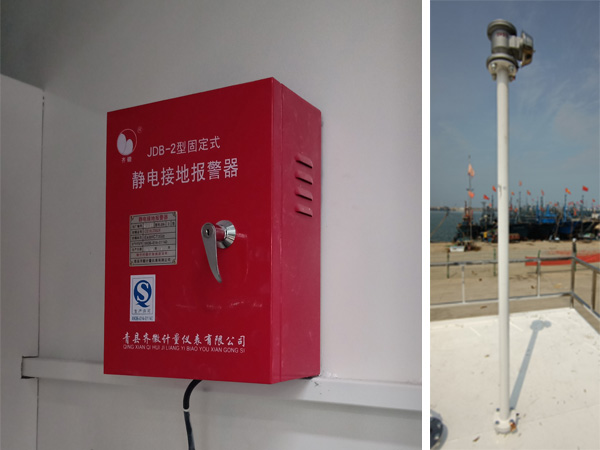

7	Safe system	One vent cap, Electrostatic grounding box Suspended fire extinguisher
8	Painting	The equipment is polished, derusted and degreased. With external three coats of painting.
9	Overall dimension	6058mm2438mm2591mm
